EVA - 360 - Steriled

Steriled product group is designed for sterilization of freight lifts and larger spaces. This device is a UV-C LED Sterilization armature used in surface cleaning with a built-in motion sensor and Special 360° Lens.

The device can be flush mounted or surface mounted. EVA-360 armatures ensure high-intensity, full-spectrum UV-C sterilization in larger spaces (max. 6m2). The device will not operate if there is motion in the sterilization area and ensures maximum safety. The device is activated after each motion detection, makes sure that the space is empty and operates with an infinite loop. The special built-in lens enables the device to reach hard-to-reach spaces and provides in-depth sterilization. (In line with m2/t index) You can choose the sterilization time with three different time settings controlled by a single button. You can also control the armature with Wi-Fi/Bluetooth. (Optional Lediot™)

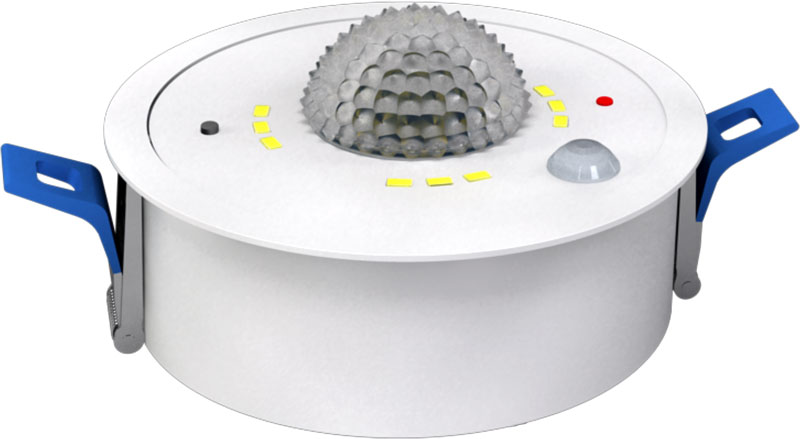

EVA 360 – F

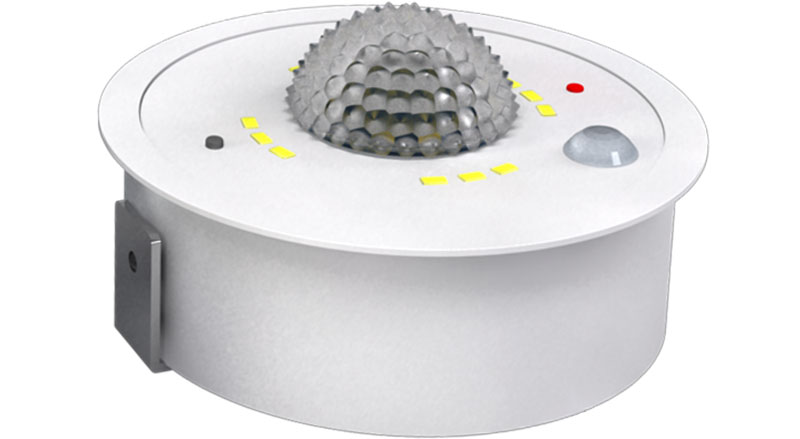

EVA 360 – S

Technical Properties

Lighting Features
Type	3535 Mid Power Led
Light Color ( X )	6500K
Power	2W
Light Intensity	240lumen
CRI	>80

UV Features
Type	UV-C Led
Wavelength	260nm - 270nm
Power	9,6W
UV Energy	400mW

Certificates
CE	CE Mark
Rohs	RoHs Compliant
Photobiological	EN62471 - ISO13485 - ISO15858

Product Features
Time Setting	30min. - 60min. - 120min.
Motion Detection	360° Motion Sensor
Dimmer	-
Control ( Optional )	Wi-Fi / Bluetooth
Operating Voltage	12VDC ( With External Adapter )
Input Voltage	110-220VAC
Total Power	14W
IP Class	41
Connection	Socket

Physical Specifications
Body	Aluminum
Covering	Electrostatic Powder Coating
Body Color	White
Mounting Type ( Y )	Flush Mounted / Surface Mounted
Dimensions	95mm x 80mm
Hole Size ( for flush mounted )	80mm
